The last year has seen a flurry of Letters to the Editor in the Daily Camera from cyclists and pedestrians alike, frustrated at each other’s behavior on the Boulder Creek Path, and other well used parts of our path network. The debate has recently been re-ignited by the city’s proposal to allow electric bikes on the multi-use paths for the next year as a trial.

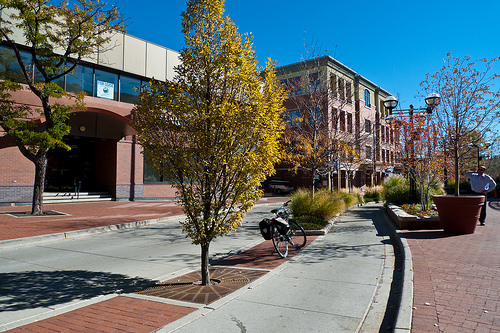

photo by Zane Selvans
Plenty of well meaning suggestions have been made to alleviate the conflicts—better signage, more enforcement of the existing 15 mph speed limit, education and outreach campaigns—along with the predictable complaints from each side about the bad behavior of the other: careless roadies zipping by at 20 miles an hour without any warning, careening around blind curves and underpasses on the wrong side of the path. Deaf iPod zombies walking dogs on 12 foot long leashes while they meander unpredictably. Etcetera.
Sharing the paths is easier and more pleasant when we’re all courteous and understanding—and we should encourage courtesy and understanding—but I think the problem we’re running into here is rooted in the physical design of the multi-use paths, and the assumption that they should be able to accommodate people moving at very different speeds in different directions. The right of way available to the paths is limited along our greenways, making it difficult to widen them and accommodate the separation of bike and pedestrian modes, but sharing space among users that travel at 15 mph and 3 mph in different directions necessarily means a lot of fairly high speed interactions—with or without electric bikes, as the Letters to the Editor from several months ago highlighted.
At low utilization you can get away with the current arrangement because conflicts are fairly rare, but as more people want to get around by walking and biking—for both recreational and utilitarian purposes—I think this issue is just going become more urgent. I think we’ll also start to see problems in other pieces of our bike infrastructure.
For instance, over the last several years the city has created a lot of right turn lanes for cars at signalized intersections. Often the bike/ped crossing is raised, and given a different surface treatment to alert drivers to the possibility of conflict at these crossings. Apparently they do a pretty good job of this, based on accident statistics as reported by Bill Cowern, the city’s traffic engineer. However, this treatment results in bikes and pedestrians waiting on a small island for the signal to change. When you have one or two bikes waiting, that’s functional. When you have 10 bikes waiting, it’s not, because they back up across the right turn lane.
We’ve done a fairly decent job of designing and building bike infrastructure that lets the enthusiastic, self-identified “cyclist” demographic use our public rights of way. However, these people only make up about 10% of the public. If we want to get more people riding for transportation, we’re going to have to do something different. The city of Portland, Oregon has identified four different broad types of cyclists, and the classification has held up well in other cities too. It shows that there’s another 60% of the population that is “interested but concerned”; they’d like to bike more, but (understandably!) they don’t feel comfortable sharing space with cars. If we’re really going to aim for anything like Biketopia, and a dramatic reduction of the greenhouse gas emissions related to our transportation system, we have to make cycling attractive to this part of the public. Interested but concerned folks tend to like the multi-use paths, but you can’t get to a lot of destinations on MUPs alone, so it’s not really a complete transportation infrastructure solution.
13th St. Separated Contra-Flow Lane (photo by Zane Selvans)
If you look at cities and countries with very high bike/ped mode shares, they have a strong tendency to not only physically separate bikes from cars on busy through streets, but also to separate pedestrians and bikes, in order to minimize conflicts. The Netherlands has five traffic design principles that they roll up into a policy they call “Sustainable Safety” (see this outline, and also the 2nd half of this post)
The most important of the five in this context is homogeneity of mass, speed and direction of road users:
Large differences in speed and mass of different road users in the same space must be eliminated as much as possible. Road users can best be forced to travel at lower speeds by road design. This works better than signs. If crashes occur at lower speed differences they cause a lot less damage to the most vulnerable road user. Where speed differences cannot be eliminated types of traffic must be separated. On roads with higher speeds road users travelling in opposite directions should be separated by a division as well, to further eliminate conflicts. Cycle paths and pedestrians are always separated from these through roads, following the principle of homogeneity of mass as well as speed. Because of this principle the Dutch will never implement a combined bus/cycle lane as is common in some other countries. Instead there are bus lanes separated from other motorized traffic because the mass of cars and buses do not match either. Eliminating crossing movements is possible with roundabouts because on roundabouts traffic flows in less conflicting directions than on an ordinary traffic junction.
Going forward, as we strive to make cycling attractive as transportation to a larger demographic in Boulder and the US, including especially children, families, women, and the elderly, I think we’re going to have to embrace much more of this kind of design. Martha Roskowski, former head of GO Boulder, is working on this with Bikes Belong, a Boulder-based national bike advocacy organization, under the Green Lane Project.
What does all this mean for the multi-use paths?
In some cases, I think we’ll be able to upgrade the greenway paths to accommodate both bikes and pedestrians without mixing them, but in a lot of cases that will prove problematic because of limited rights of way, and the intrinsically sinuous nature of some greenways. I think the real solution is to create a well connected, low-stress network of bikeways on and along our streets that are attractive to everyone, including families with small children, allowing them to alleviate some of the bike traffic on the paths. When people are just trying to get from point A to point B efficiently, they’ll often choose to use the street-level network since the greenways are rarely the most direct route.
There are lots of different kinds of infrastructure we can build on and along our streets that can appeal to just about every possible riding demographic. Copenhagen style cycle tracks are one option, highlighted in this video:
Portland’s Neighborhood Greenways (also sometimes known as Bike Boulevards) are another:
How we can create a bike network that appeals to everyone, not just a minority of enthusiasts, is one of the things we’re talking about this year as the city updates its Transportation Master Plan. You’ll see some new stuff out on the streets in the coming months, details of which can be found on the city’s Complete Streets page. If you’d like to bike more in the city, but don’t feel comfortable with some of our existing bike lanes or routes, please let the city know, and sign up to give feedback on the plan with the TMP update comment form.
Unfortunately, I don’t have any suggestions for short term fixes to the bike/ped conflicts on the busiest parts of our paths. I wish I did! But at the same time, I don’t think it’s likely that “allowing” e-bikes (which do already use the paths) is going to make the problem noticeably worse.
This post originally appeared on Flat Iron Bike.
